IPEL-B40V-W2-LED
Details
Elite Level Performance

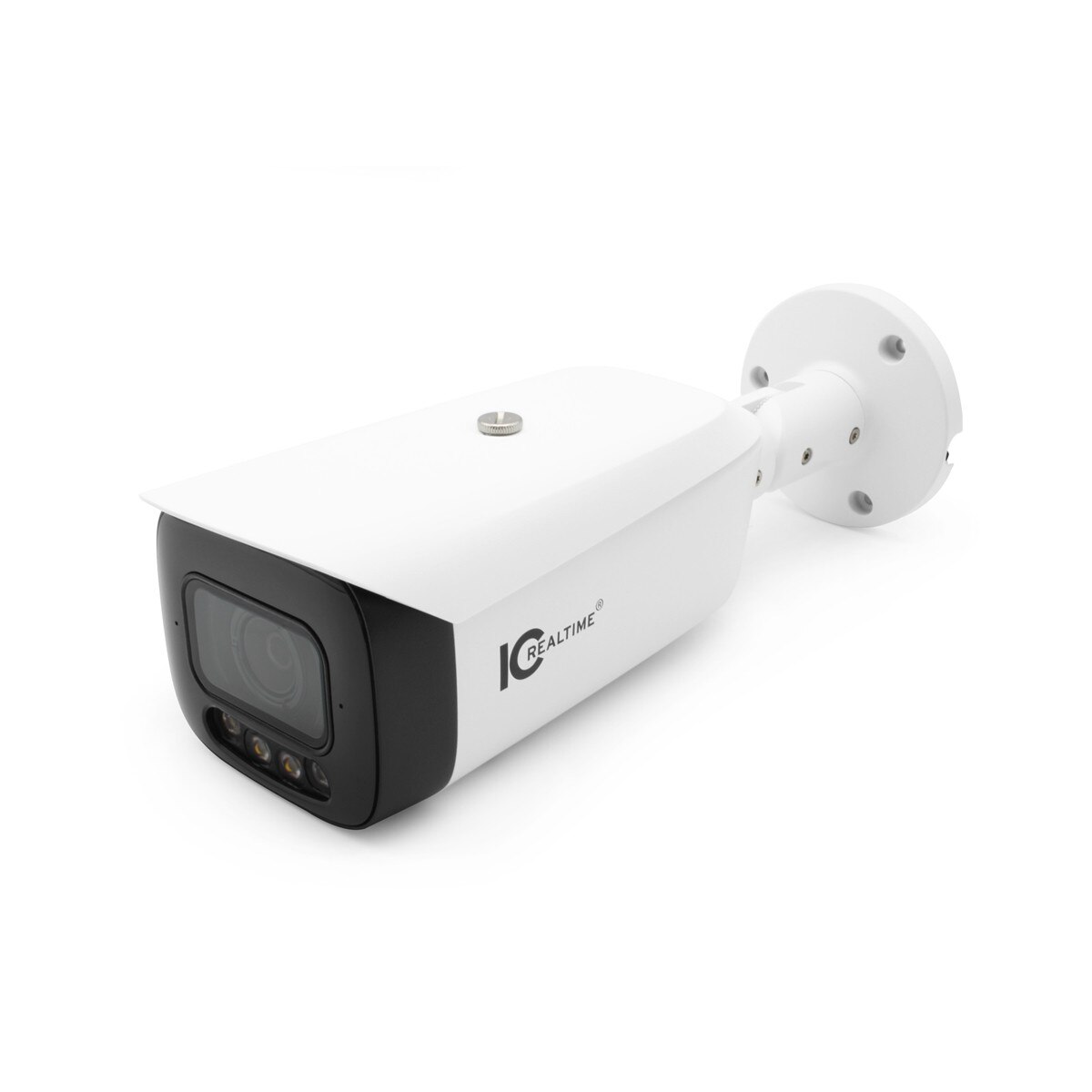

Introducing the IC Realtime IPEL-B40V-W2-LED, our Elite-level IP camera crafted to deliver powerful 24/7 color imaging and advanced AI-driven security. With a 2.7-12mm motorized varifocal lens, this 4MP camera captures sharp images in resolutions up to 2688 × 1520 (4MP) at 30 fps, ensuring clear and detailed coverage over an adjustable 104.7°–56.1° field of view. Its CMOS image sensor excels in low-light scenarios, while warm LEDs provide full-color illumination up to 229 feet, making it a reliable option even in the darkest conditions.
Designed to deliver outstanding audio-visual monitoring, this camera comes equipped with a built-in microphone and speakers, enabling live two-way communication. Its WDR (Wide Dynamic Range) of 140dB ensures balanced and precise imaging in high-contrast scenes. With durable IP67-rated protection, this device withstands harsh weather, while its 11.35" × 3.72" × 3.33" form factor fits seamlessly into various environments.
Equipped with intelligent Perimeter Protection, the IPEL-B40V-W2-LED utilizes virtual tripwire and intrusion detection features to classify and detect human and vehicle objects, providing an additional layer of security. This model also features Intelligent Motion Detection 2.0, using secondary filtering to reduce false alerts and focusing precisely on human and vehicle movement. Pairing this camera with an IC Realtime NVR allows for efficient intelligent search, further simplifying security management.
The camera is built with versatility in mind, supporting PoE+ (802.3at), ePoE, or traditional 12 VDC power sources, and offering redundant power capabilities. With a power consumption of 11.3 W on 12 VDC or 13 W on PoE, it remains efficient yet resilient against power fluctuations. Storage options are enhanced with support for up to 512GB of microSD storage, ensuring ample space for recorded footage.
The IPEL-B40V-W2-LED integrates effortlessly with IC Now desktop software and is compatible with IC View+, IC Realtime’s mobile app available on iOS and Android, allowing users to monitor and manage their security feeds from anywhere. With a 10-year warranty and dedicated U.S.-based tech support, IC Realtime ensures long-term reliability and peace of mind, making the IPEL-B40V-W2-LED the clear choice for those seeking robust, intelligent, and user-friendly surveillance.
Specifications
| Camera | |
| Image Sensor: | 1/1.8” CMOS |
| Effective Pixels: | 2688 (H) ×1520 (V) 4 Megapixels |
| RAM/Rom: | 256MB/ 1GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.0005 Lux@F1.0 |
| Illumination Distance: | Distance up to 229ft (70 m) |
| Illumination On/Off Control: | Auto / Manual/ Zoom Priority |
| Illumination LEDs: | 4 (Warm White) |
| Camera Illumination Type: | White Light |
| Lens | |
| Lens Type: | Motorized vari-focal |
| Mount Type: | Module |
| Focal Length: | 2.7 mm–12 mm |
| Max. Aperture: | F1.0 (Constant) |
| Angle of View: | H: 104.7°–56.1° V: 54.9°–31.4° |
| Close Focus Distance: | 4.9 ft (1.5 m) |
| DORI - Detect: | 213 ft- 365 ft |
| DORI - Observe: | 85 ft- 146 ft |
| DORI - Recognize: | 42 ft- 73 ft |
| DORI - Identify: | 21 ft- 36 ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion, Fast Moving |
| Advanced Intelligent Functions: | Perimeter Protection-Tripwire; Intrusion, Fast Moving (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect 2.0- Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs. Video Metadata, Face Detection & People Counting |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main Stream: 2688 × 1520 (1 fps–25/30 fps) Sub Stream: D1 (1 fps–25/30 fps) Third Stream: 1080p (1 fps–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 kbps–16384 kbps H.265: 12 kbps–16384 kbp |
| Backlight Compensation: | BLC / HLC / WDR (140dB) |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Iris Control: | Auto |
| WDR: | WDR (140dB) |
| Audio | |
| Compression: | PCM; G.711a; G.711Mu; G.726; G.723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Compatibility: | ONVIF(Profile S/ Profile G/ Profile T);CGI;P2P |
| Max. User Access: | 20 Users (Total bandwidth: 80 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (Max. 512 GB); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-In Dual Mic and Speakers, 1 Audio In/ Out (RCA ports) |
| Alarm I/O: | 2 channel in: wet contact, 5mA 3V–5V DC 1 channel out: wet contact, 300mA 12V DC |
| Memory Slot: | Micro SD card (Max. 512 GB) |
| Electrical | |
| Power Supply: | 12 VDC/PoE+ (802.3at)/ePoE; Redundant power- The camera can be powered by PoE and 12V adapter for redundancy (if one of the power sources fails, the camera will still function) |
| Power Consumption: | Basic: 2.7 W (12 VDC); 4.2 W (PoE) Max. (H.265+ warm light+ Intelligence on + three streams): 11.3 W (12 VDC); 13 W (PoE) |
| Environmental | |
| Operating Conditions: | –22°F to +140°F (–30°C to +60°C )/less than 95% |
| Storage Conditions: | -40°F to +140°F (-40°C to +60°C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |

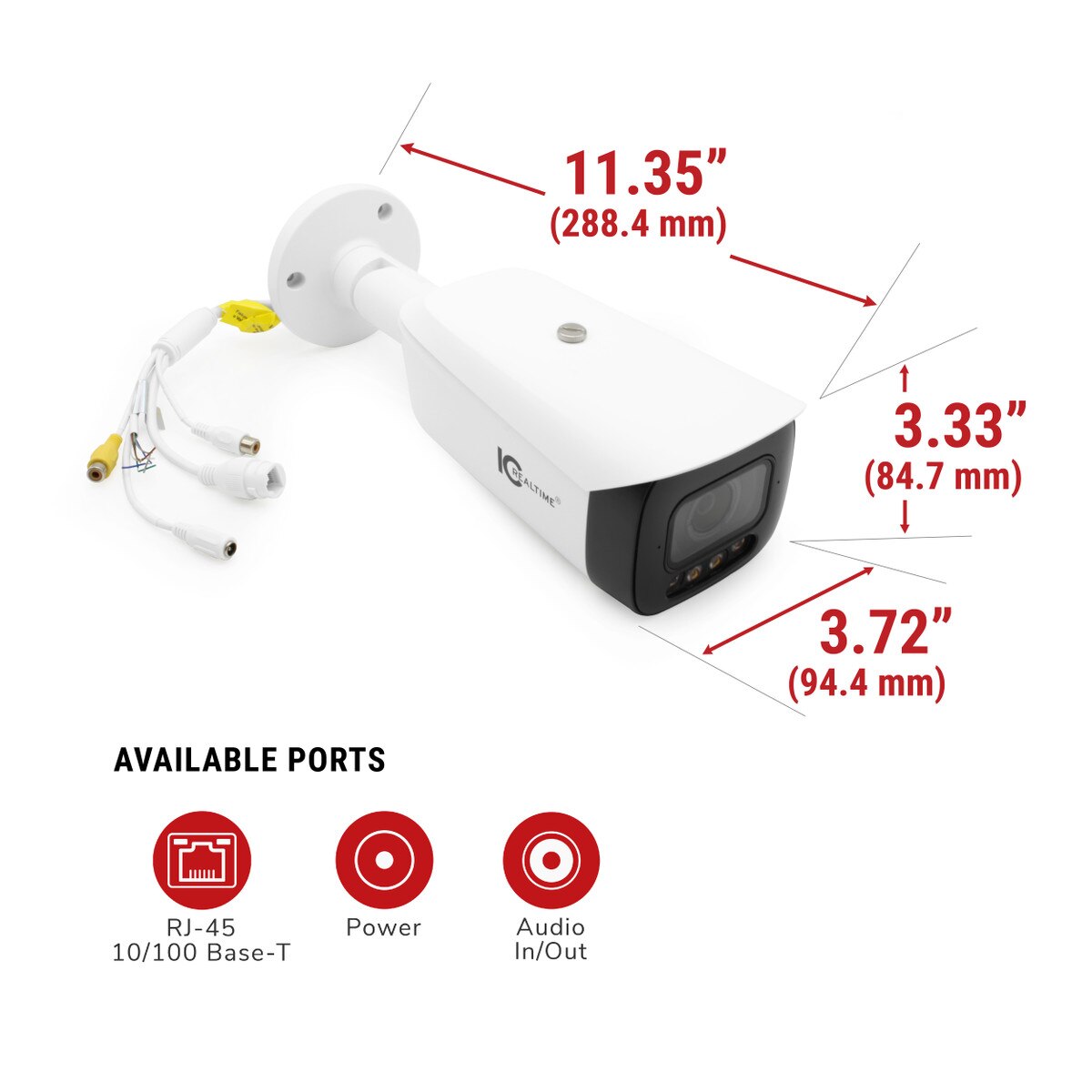

| Dimensions: | 11.35" × 3.72" × 3.33" (288.4 mm × 94.4 mm × 84.7 mm) |
| Gross Weight: | 3.24 lb (1470 g) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–90° Rotation:0°–360° |
