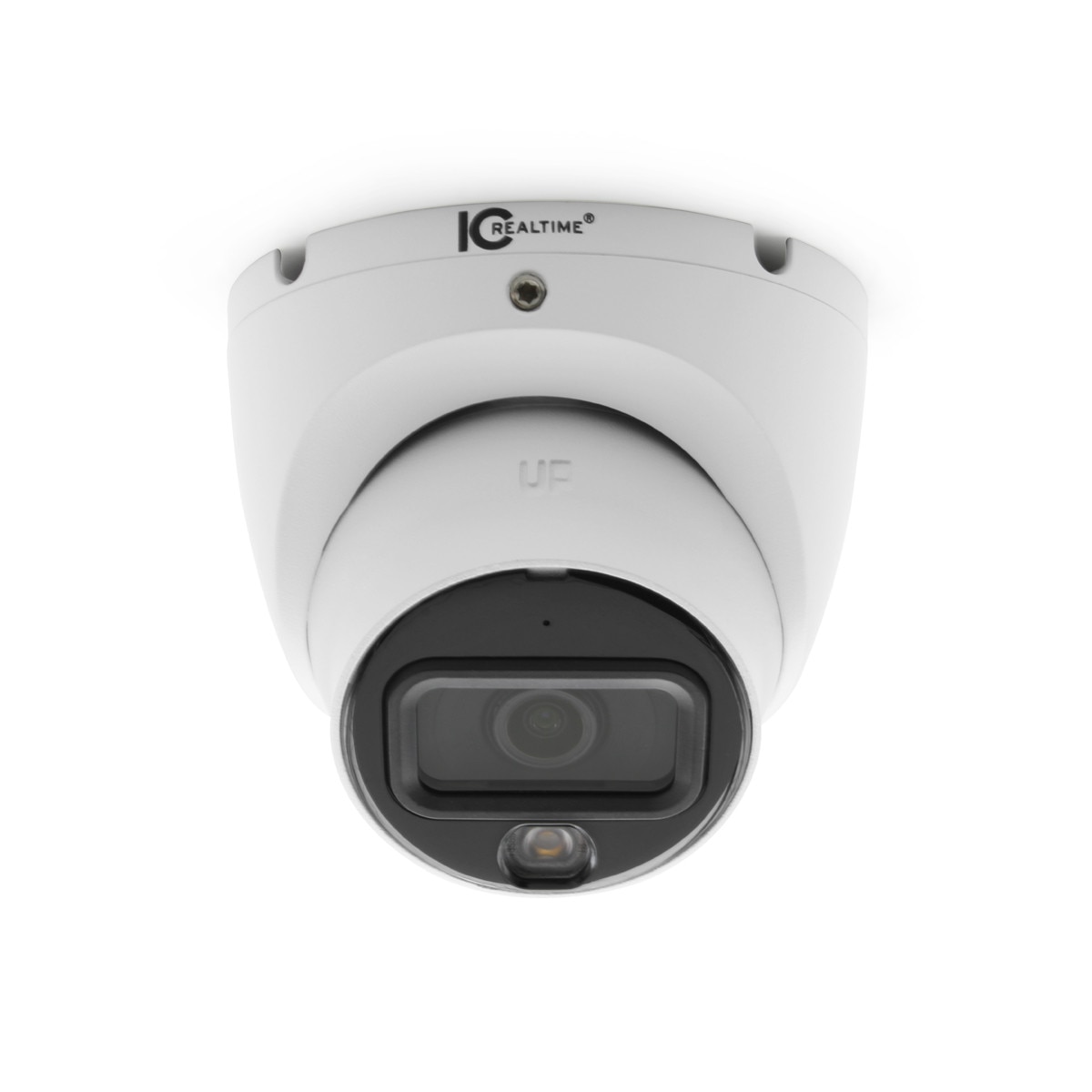

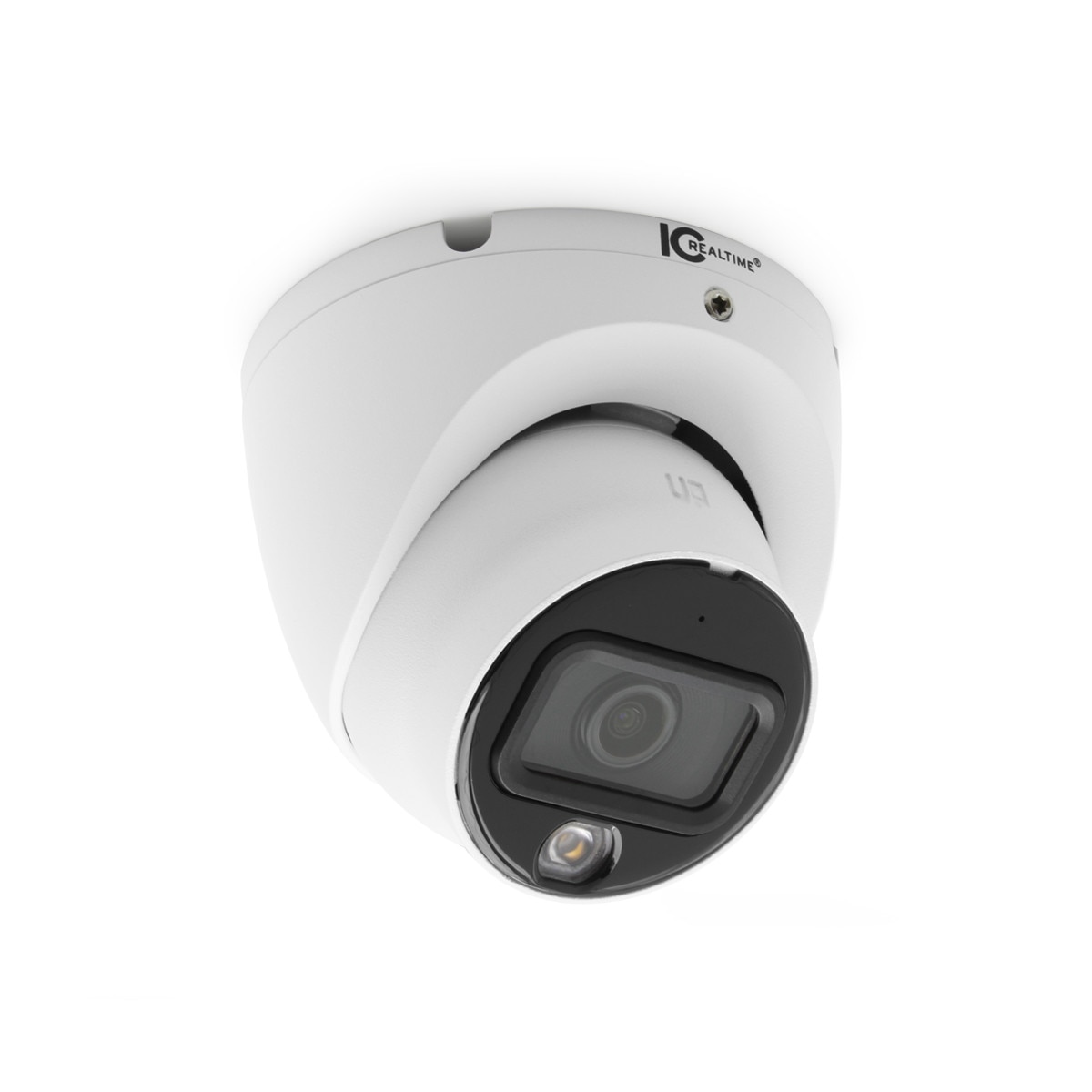

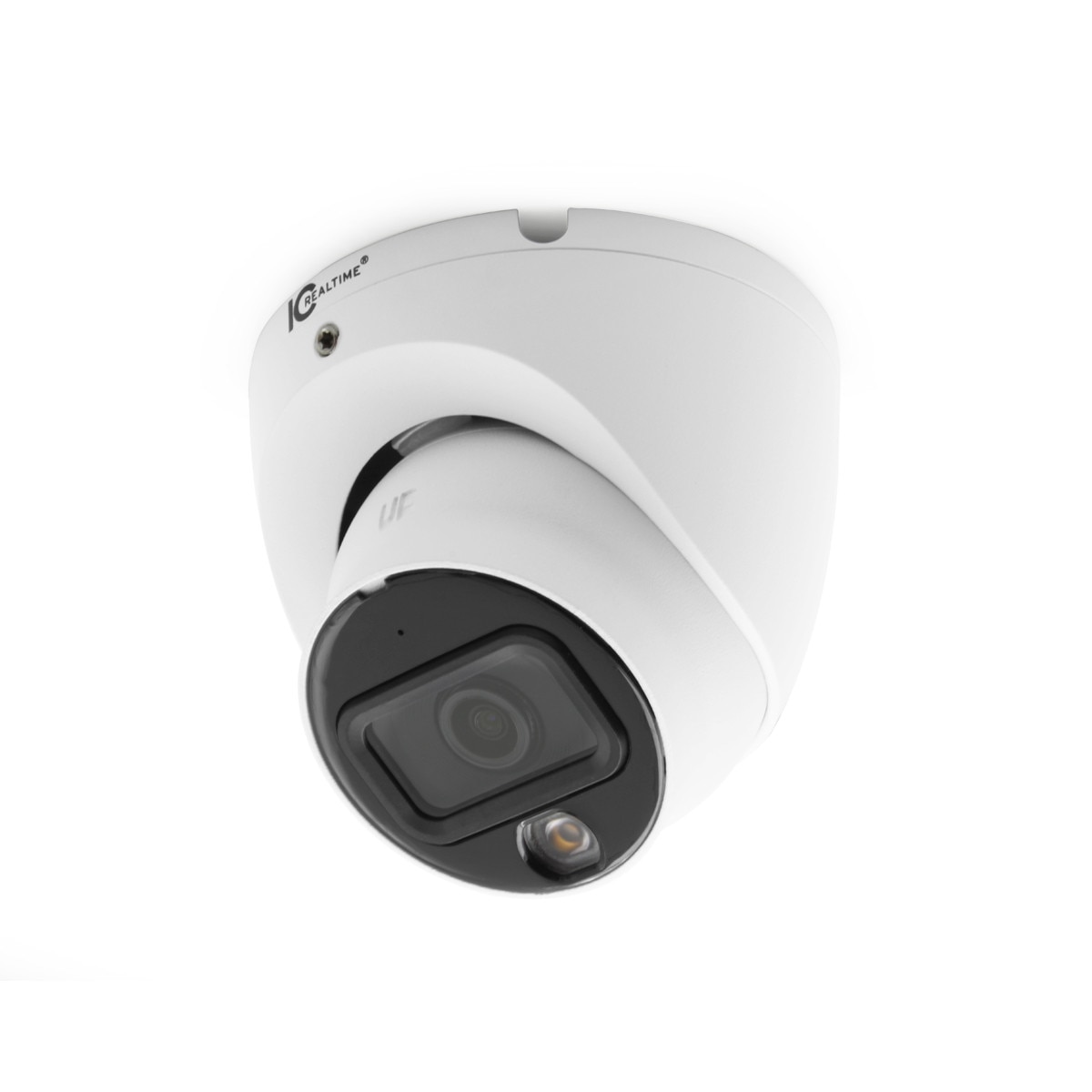

HDEG-E80F-DI-M1

Introducing the latest addition to IC Realtime’s Edge lineup—the HDEG-E80F-DI-M1 Coaxial AVS Eyeball Turret Camera. This cutting-edge camera combines 4K resolution and Smart Dual Illumination to deliver a superior surveillance experience.

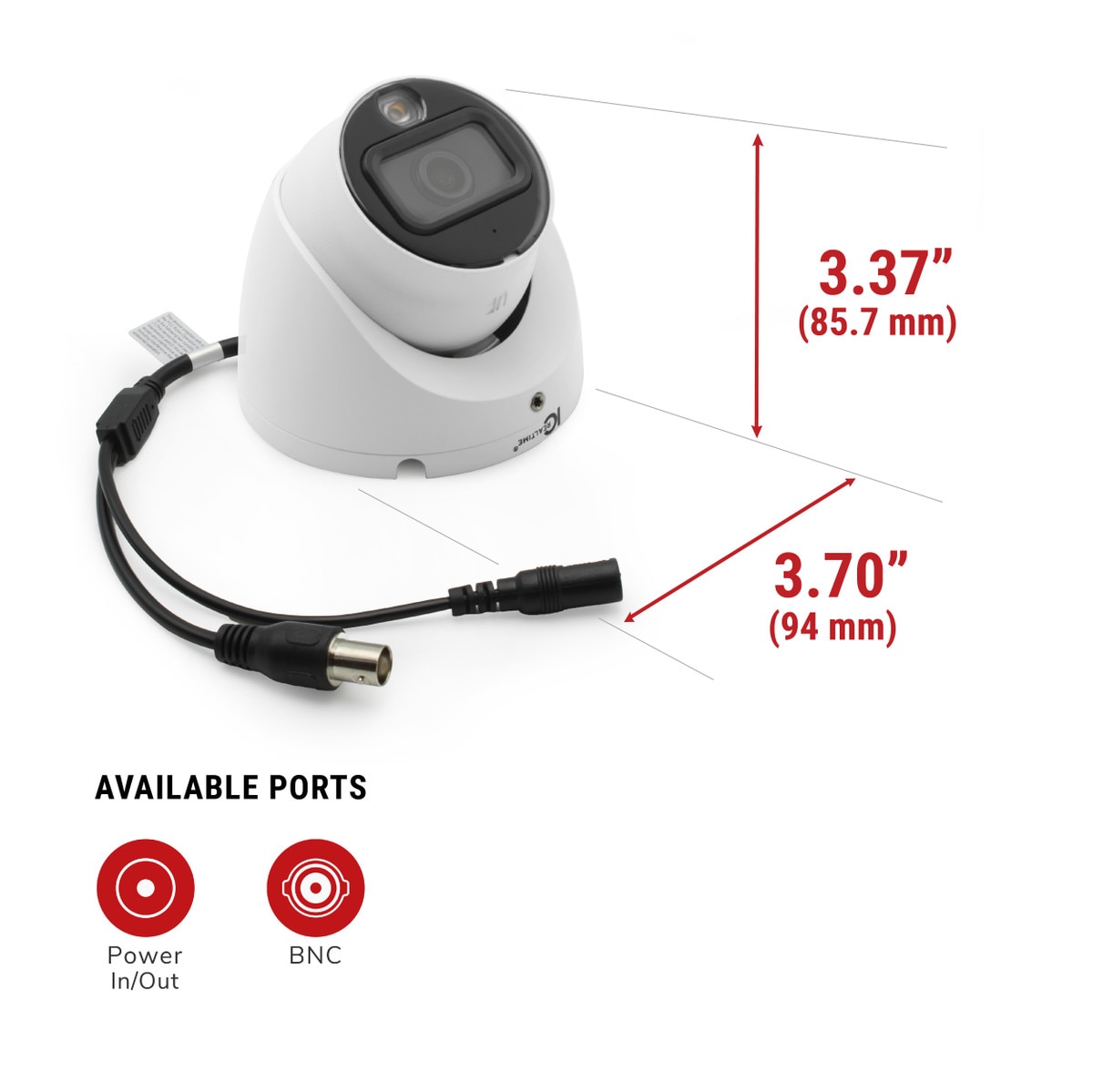

At the core of the HDEG-E80F-DI-M1 is its advanced 4K CMOS image sensor, which provides unparalleled image clarity and definition, even in low-light conditions. With an 8MP resolution (3840 × 2160) at 15 frames per second, this camera ensures every detail is captured. The 2.8mm fixed lens offers an impressive 106° angle of view, and the compact dimensions of 3.70" × 3.37" make it a perfect fit for various installation environments.

The camera’s Smart Dual Illumination technology sets it apart, featuring both IR and warm light LEDs for dynamic lighting solutions. In standard low-light scenarios, the camera operates in IR mode for discreet monitoring. When a target is detected using IC Realtime’s HDVR Intelligence, the camera seamlessly switches to white light illumination, delivering up to 65 feet of vivid, full-color footage even in the darkest conditions.

Engineered to excel in challenging environments, the HDEG-E80F-DI-M1 boasts 120dB WDR (Wide Dynamic Range) and HLC-Pro with Super Adapt, ensuring optimal image quality regardless of lighting complexities. Its IP67 rating guarantees exceptional durability, making it resistant to dust and water. Additionally, a built-in microphone captures high-quality audio for enhanced situational awareness. The camera supports multiple video output formats—AVS, TVI, AHD, and CVBS—via a single BNC port, providing versatile integration options.

Powering the HDEG-E80F-DI-M1 is a reliable 12V DC supply with ±30% tolerance, ensuring consistent performance. When paired with IC Realtime’s HDVR systems, this camera becomes a gateway to advanced surveillance features, including seamless integration with the IC Now desktop platform and the IC View+ mobile app for iOS and Android. This compatibility allows for flexible monitoring and management from virtually anywhere.

Backed by a robust 7-year warranty and outstanding U.S.-based technical support, the HDEG-E80F-DI-M1 represents a new standard in reliability and innovation for professional security solutions. Elevate your surveillance capabilities with IC Realtime.
